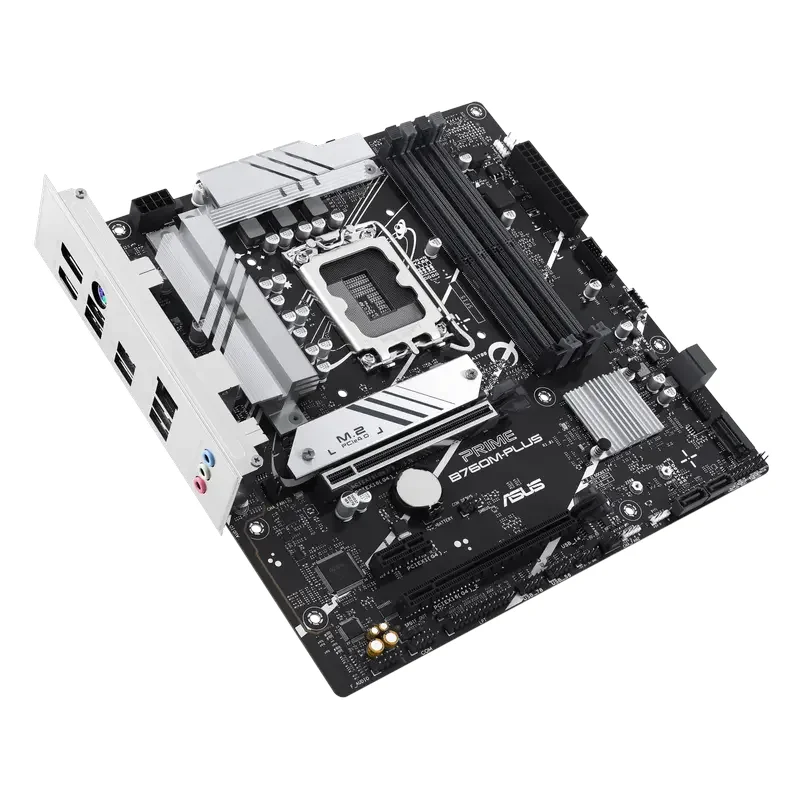

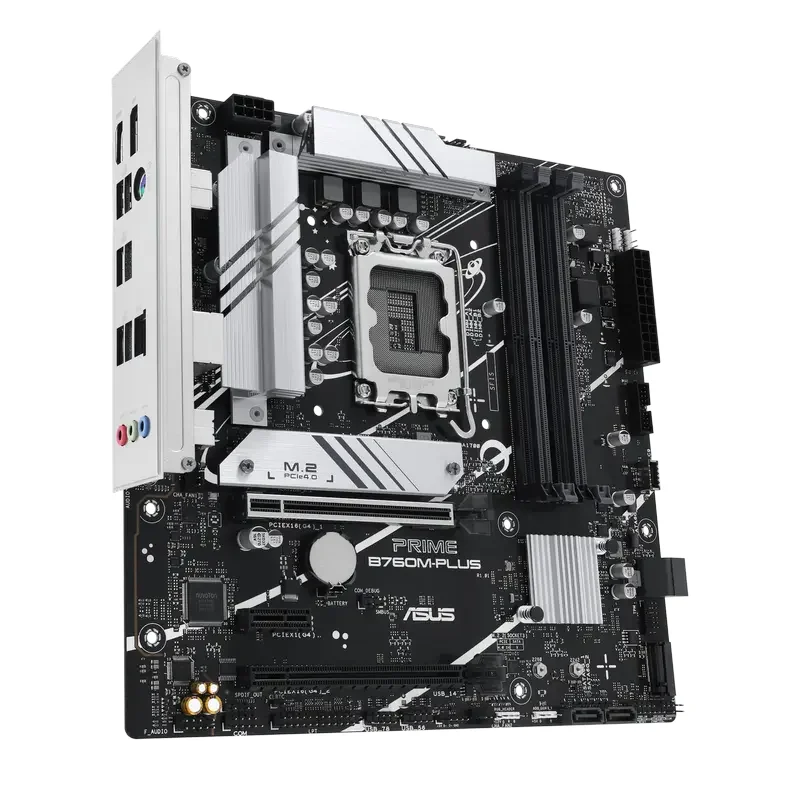

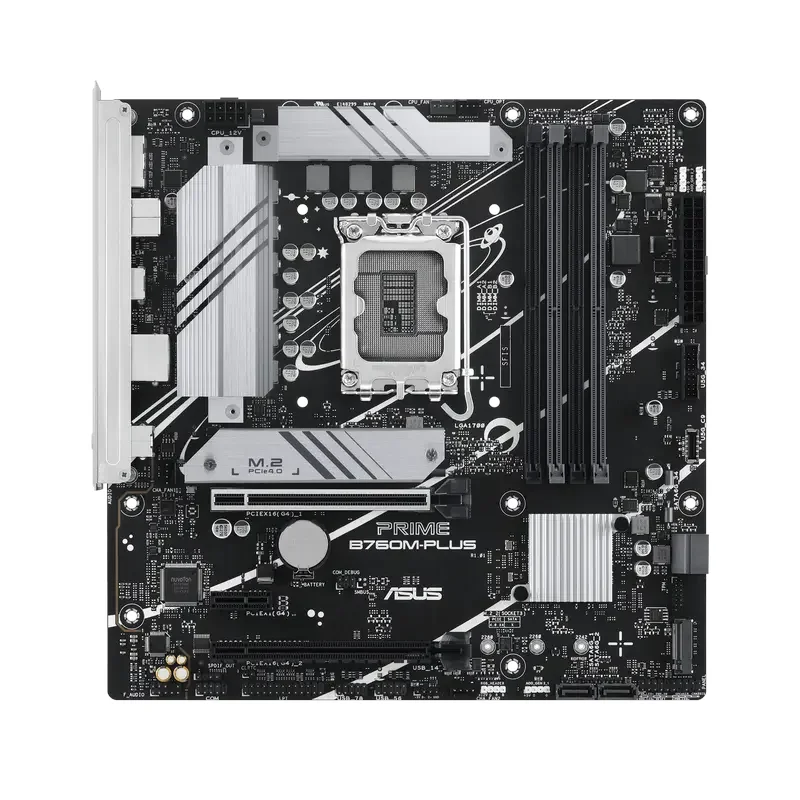

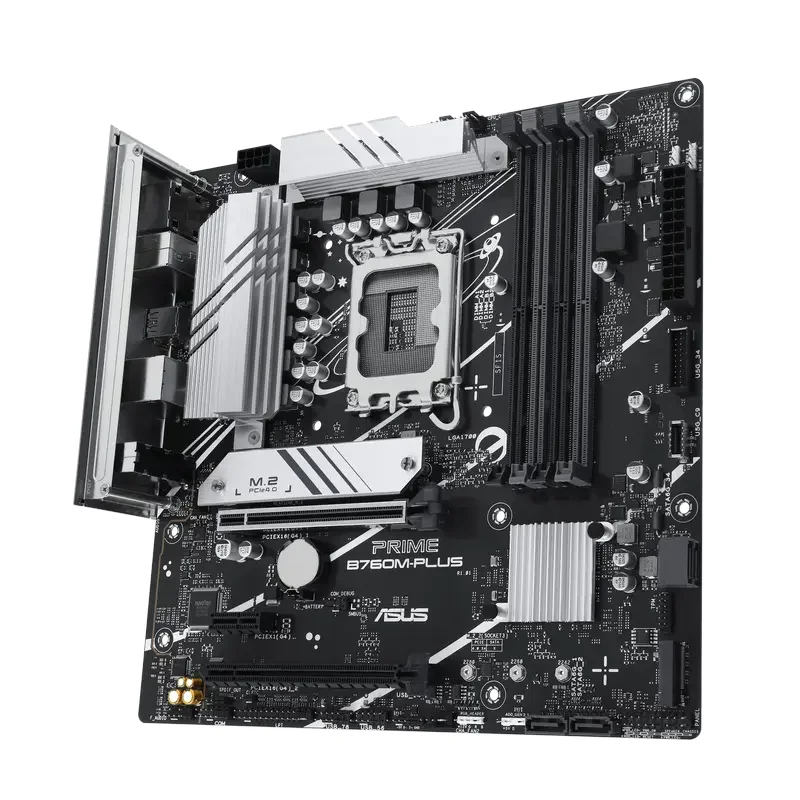

Mainboard ASUS PRIME B760M-PLUS, LGA1700, Intel B760, Micro-ATX
Product code: 240572
Mainboard ASUS PRIME B760M-PLUS, LGA1700, Intel B760, Micro-ATX
Description
In stock
3319 lei
Add to cart
Credit from 0 lei / month
Description
Specifications
Essential Characteristics
Type
Mainboard
Socket
LGA1700
Motherboard Form-Factor
Micro-ATX
CPU Support
Intel Core Gen 12th/13th/14th & Celeron/Pentium
Memory
Memory Slots
4x DIMM
Max. Memory Speed (OC) (Mhz)
5600
Total max. RAM Size
192GB
Memory Speed
7200 MHz
Memory Type
DDR5 SDRAM
System on Chip (SoC)
Chipset
Intel B760
Connectivity
Audio Jacks
3x audio jacks
DisplayPort
1x
Dimension and Weight
Dimension
24.4 x 24.4 cm
Interfaces/Ports
USB 2.0 Type-A
4x
USB 3.x Type-A
2x
HDMI
1x
Network Connectivity
Ethernet controller #1
2.5 Gigabit Realtek Ethernet
Expansion Slots
PCIe 4.0 Support
Yes
PCI-Express x16 Slots
2
PCI-Express x1 Slots
1
Storage Interfaces
M.2 Expansion Slots
2
Slot support M2 #1
M2: type 2242/2260/2280 (PCIe Gen4 x4)
Slot support M2 #2
M2: type 2242/2260/2280 (PCIe Gen4 x4)
SATA Connectors
4x SATA 6Gb/s
RAID
RAID 0, RAID 1, RAID 5, RAID 10
Interfaces / Ports Rear
PS/2 ports
1
COM Port
No
Graphics and Audio
Audio Chipset
7.1 Surround Sound High Definition Audio
Internal I/O Connectors
USB 2.0 Headers
3x USB 2.0
USB 3.x Headers
1x
COM Port Header
1
LPT Port Header
1
Addressable LED Header
3
Other specifications
Manufacturer
ASUS
