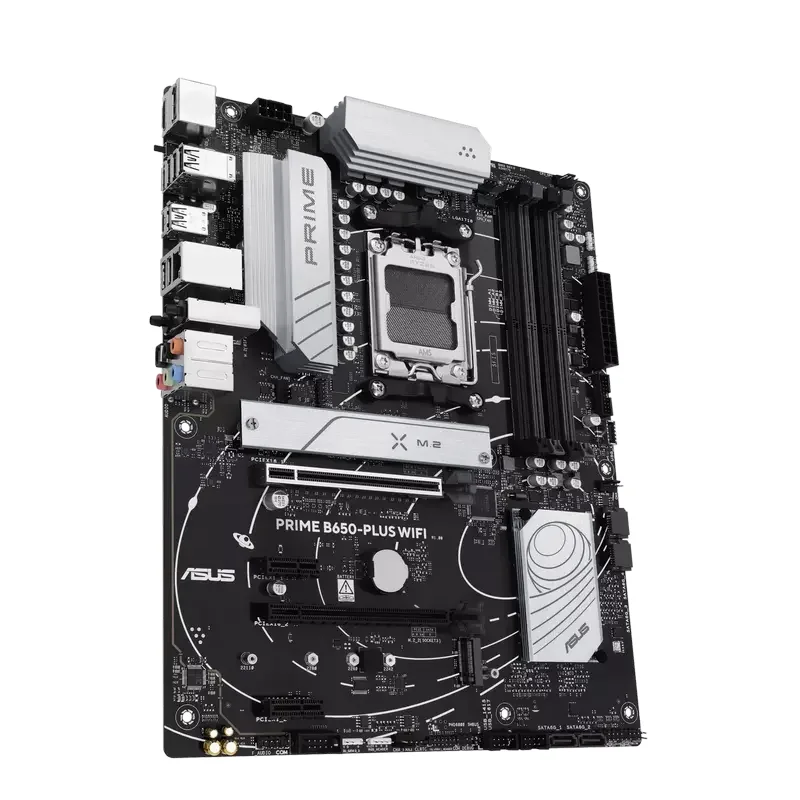

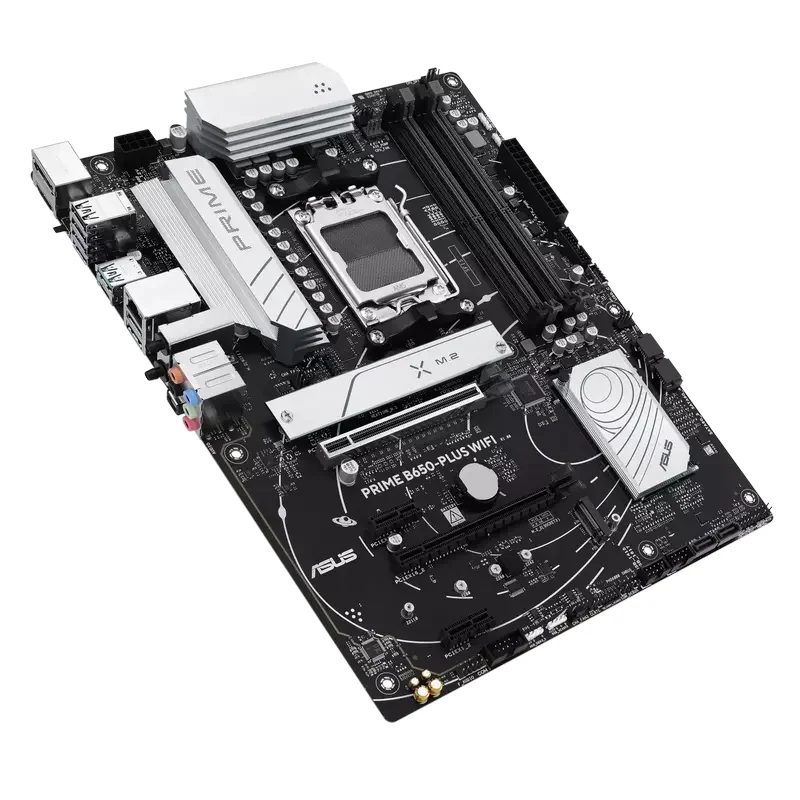

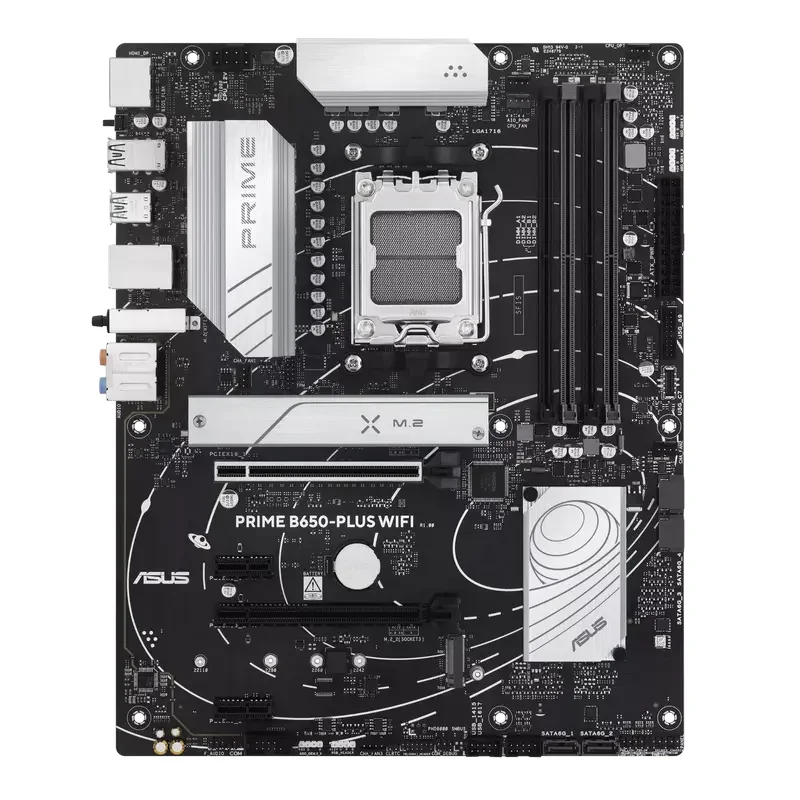

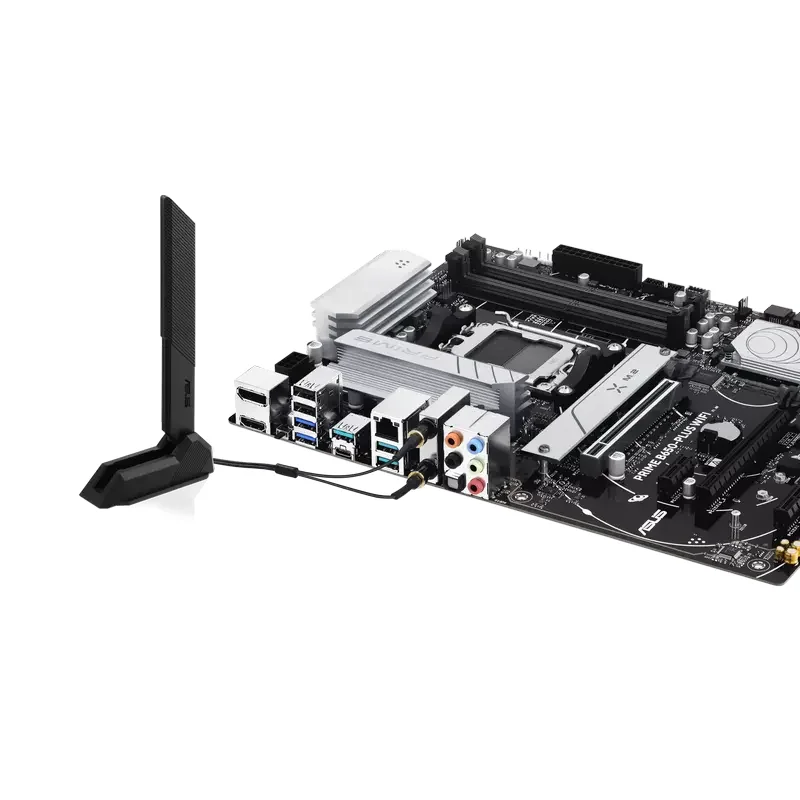

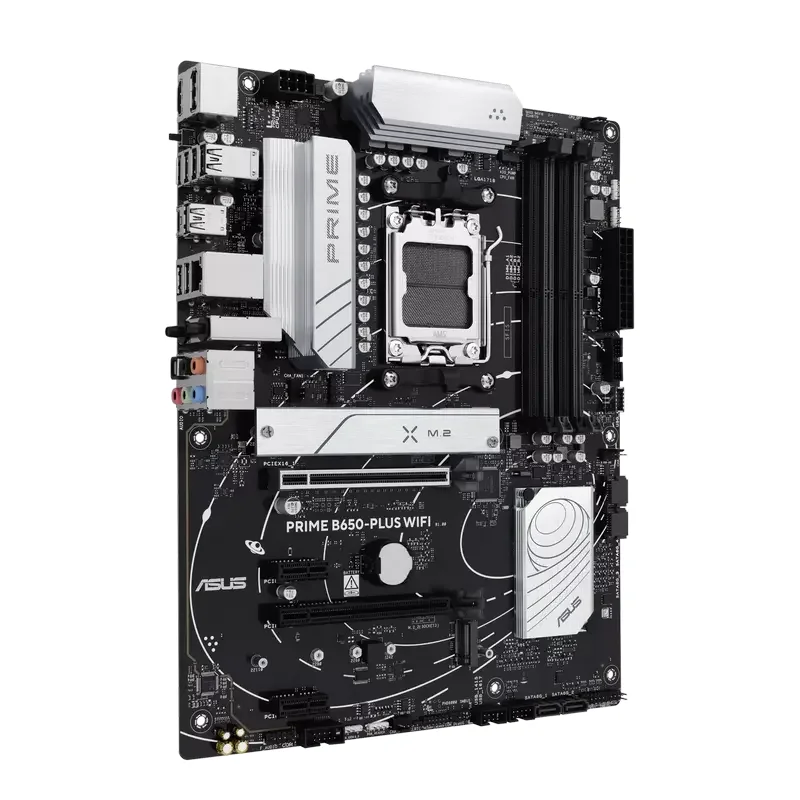

Mainboard ASUS PRIME B650-PLUS WIFI, AM5, AMD B650, ATX
Product code: 249929
Mainboard ASUS PRIME B650-PLUS WIFI, AM5, AMD B650, ATX
Description
In stock
3499 lei
Add to cart
Credit from 0 lei / month
Description
Specifications
Essential Characteristics
Type
Mainboard
Socket
AM5
Motherboard Form-Factor
ATX
CPU Support
Ryzen series (7000/8000/9000)
Output Connectors
USB Type-C
1x
Memory
Memory Slots
4x DIMM
Max. Memory Speed (OC) (Mhz)
7200
Total max. RAM Size
192GB
Memory Speed
7600 MHz
Memory Type
DDR5 SDRAM
System on Chip (SoC)
Chipset
AMD B650
Connectivity
Audio Jacks
5 x audio jacks
DisplayPort
1x DP 1.4
Dimension and Weight
Dimension
30.5 x 24.4 cm
Interfaces/Ports
USB 2.0 Type-A
2x
USB 3.x Type-A
5x
HDMI
1x HDMI 2.1
Thunderbolt connector
1x Thunderbolt 4
Network Connectivity
Ethernet controller #1
2.5 Gigabit Realtek Ethernet
Wi-Fi Controller
802.11ax 2x2 Wi-Fi + BT 5.x
Bluetooth
5.3
Expansion Slots
PCIe 4.0 Support
No
PCI-Express x16 Slots
2
PCI-Express x1 Slots
1
Storage Interfaces
M.2 Expansion Slots
2
Slot support M2 #1
M2: type 2242/2260/2280 (PCIe Gen5 x4)
Slot support M2 #2
M2: type 2242/2260/2280 (PCIe Gen4 x4)
SATA Connectors
4x SATA 6Gb/s
RAID
RAID 0, RAID 1, RAID 10
Interfaces / Ports Rear
COM Port
Yes
Internal I/O Connectors
USB 2.0 Headers
2x USB 2.0
USB 3.x Headers
2x
Addressable LED Header
3
Other specifications
Manufacturer
ASUS
