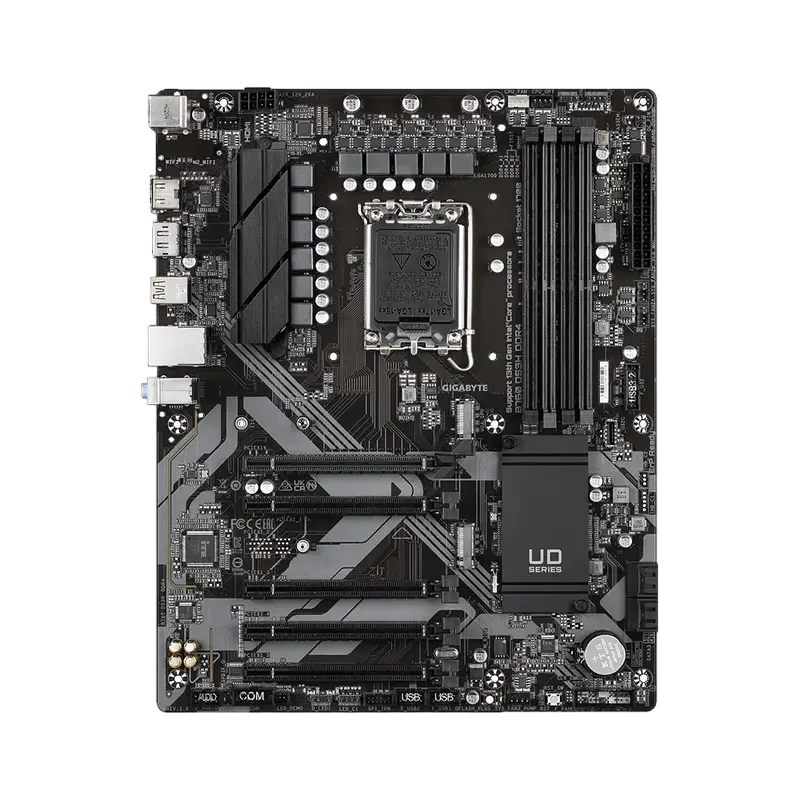

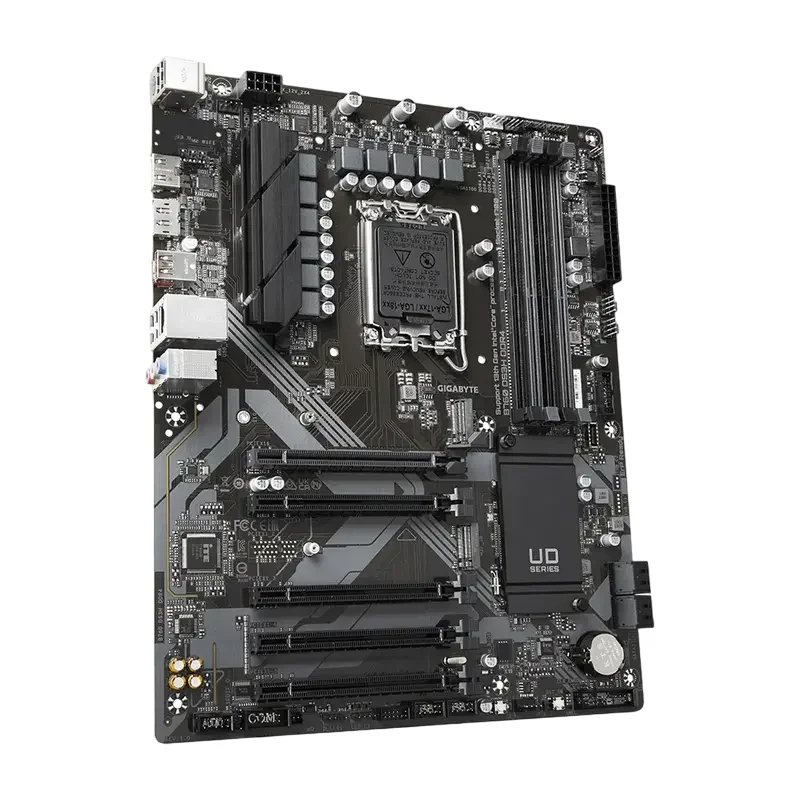

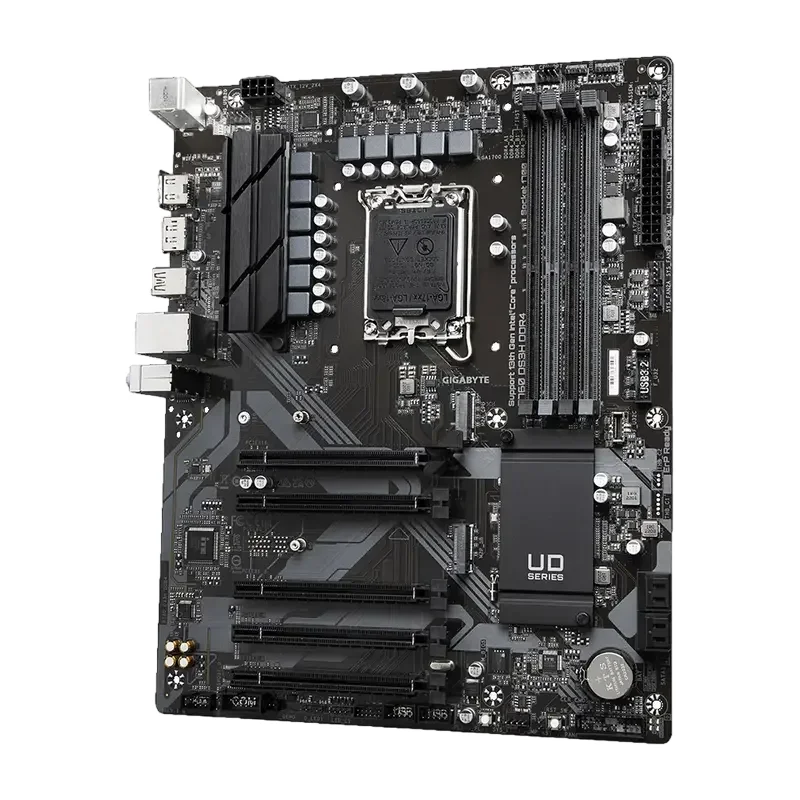

Mainboard Gigabyte B760 DS3H DDR4, LGA1700, Intel B760, ATX
Product code: 202460
Mainboard Gigabyte B760 DS3H DDR4, LGA1700, Intel B760, ATX
Description
In stock
2739 lei
Add to cart
Credit from 0 lei / month
Description
Specifications
Essential Characteristics
Type
Mainboard
Socket
LGA1700
Motherboard Form-Factor
ATX
CPU Support
Intel Core Gen 12th/13th & Celeron/Pentium
Output Connectors
USB Type-C
1x USB 3.2
Memory
Memory Slots
4x DIMM
Max. Memory Speed (OC) (Mhz)
5333
Total max. RAM Size
128 GB
Memory Speed
3200 MHz
Memory Type
DDR4 SDRAM
System on Chip (SoC)
Chipset
Intel B760
Connectivity
D-Sub (VGA)
--
Audio Jacks
3x audio jacks
DVI
--
DisplayPort
1x DP 1.2
Dimension and Weight
Dimension
30.5 x 24.4 cm
Interfaces/Ports
USB 2.0 Type-A
4x
USB 3.x Type-A
2x USB 3.2
HDMI
1 x HDMI 2.0
Network Connectivity
Ethernet controller #1
1 Gigabit Realtek Ethernet
Expansion Slots
PCIe 4.0 Support
Yes
PCI-Express x4 Slots
1
PCI Slots
1
PCI-Express x16 Slots
5
PCI-Express x1 Slots
2
Storage Interfaces
M.2 Expansion Slots
2
SATA Connectors
4x SATA 6Gb/s
RAID
RAID 0, RAID 1, RAID 5, RAID 10

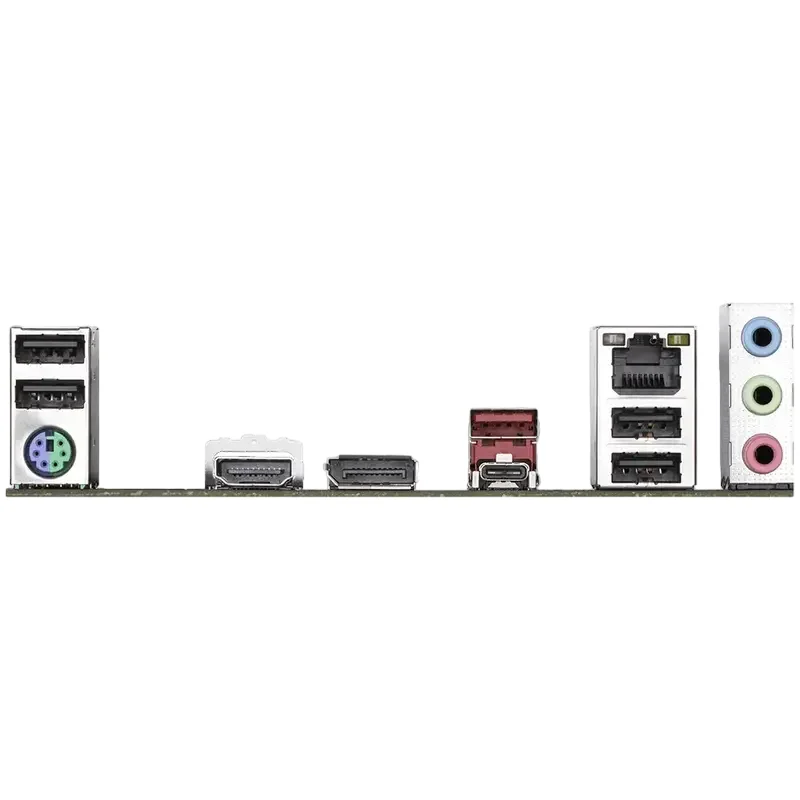

Interfaces / Ports Rear
PS/2 ports
1
COM Port
No
Graphics and Audio
Audio Chipset
7.1 Ch HD Audio, Realtek AL1200
SPDIF Out
1x Optical SPDIF Out Port
Internal I/O Connectors
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 3.x Headers
1x USB 3.2 Gen 2 (Supports USB Type-C) + 1x USB 3.2 Gen1 (Support 2 USB 3.2 Gen 1 ports)
COM Port Header
0
LPT Port Header
0
Addressable LED Header
2
RGB LED Headers
2
Other specifications
Manufacturer
Gigabyte
