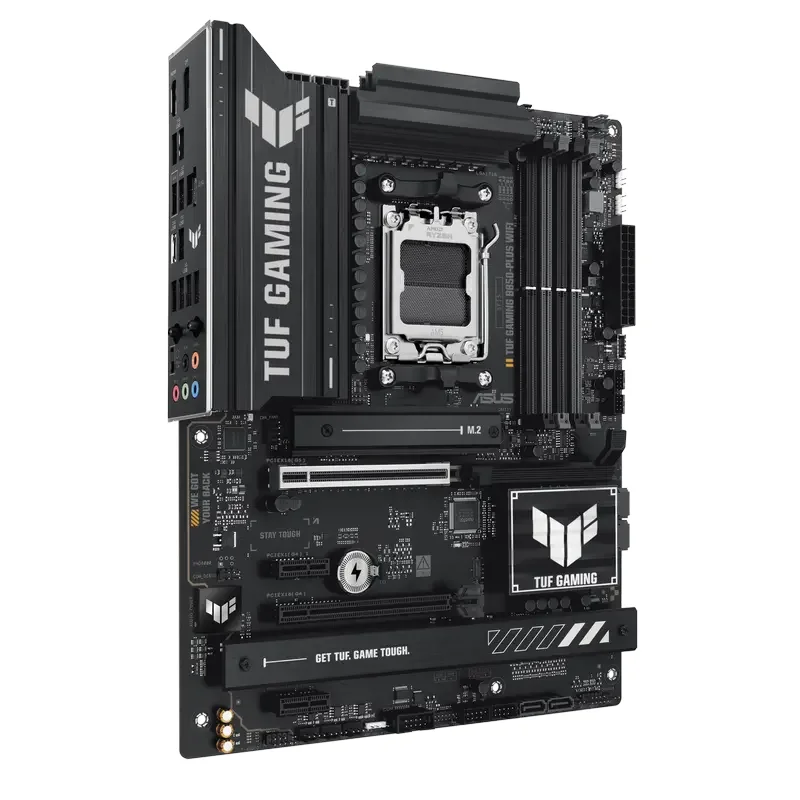

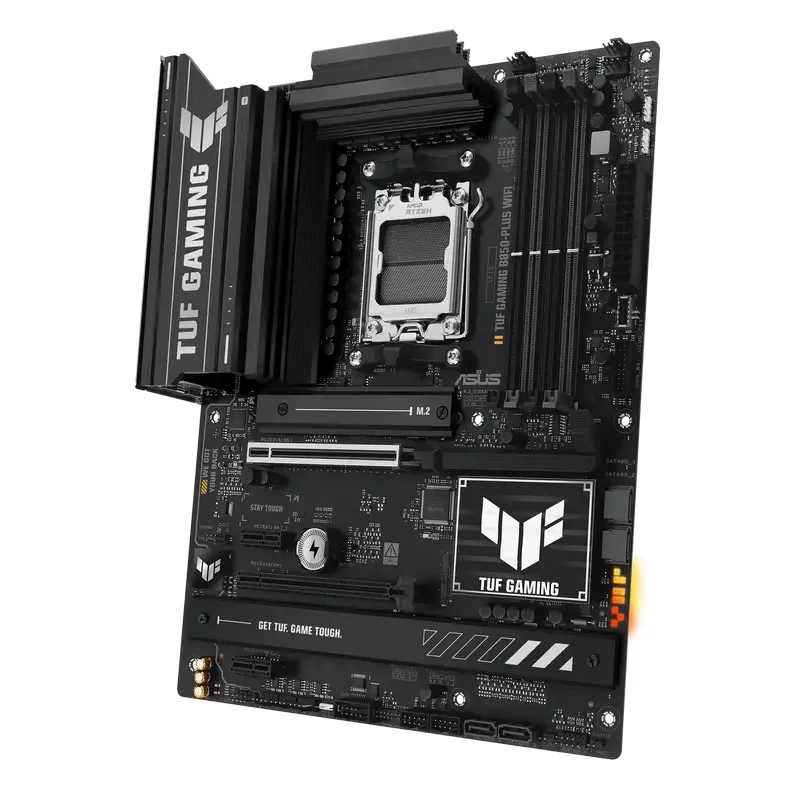

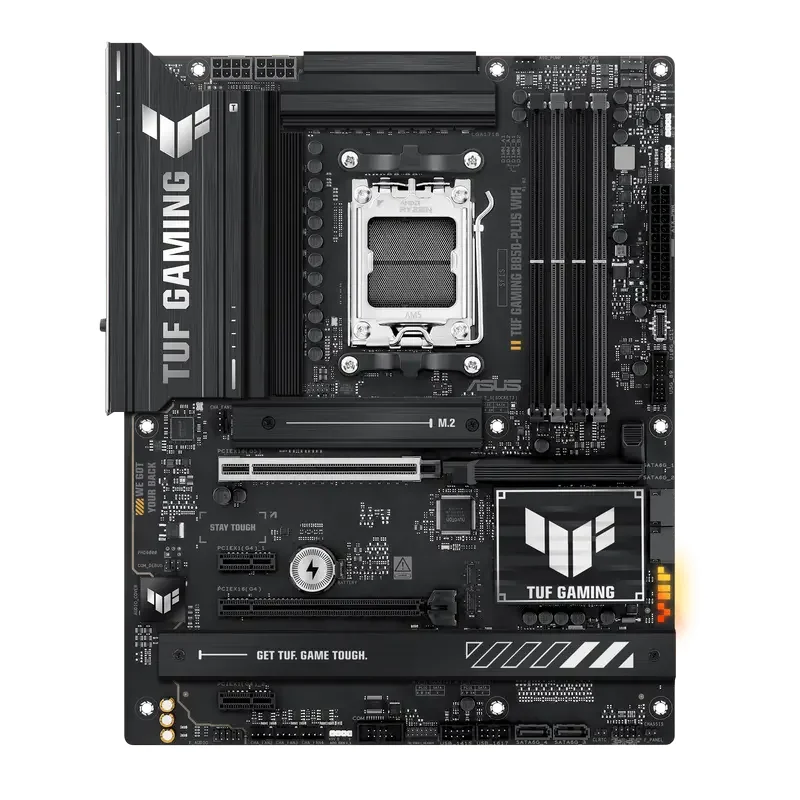

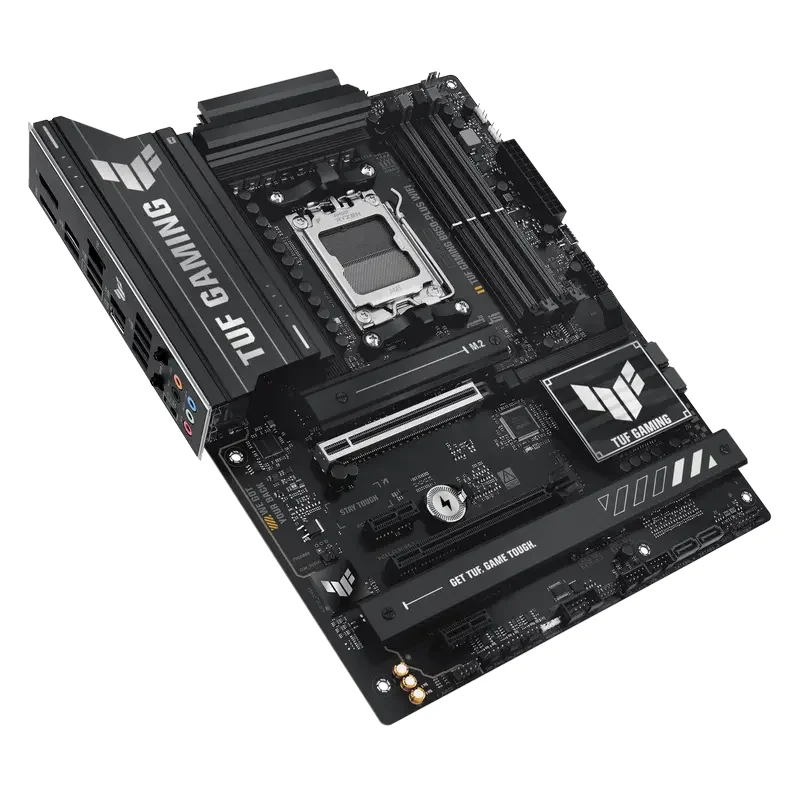

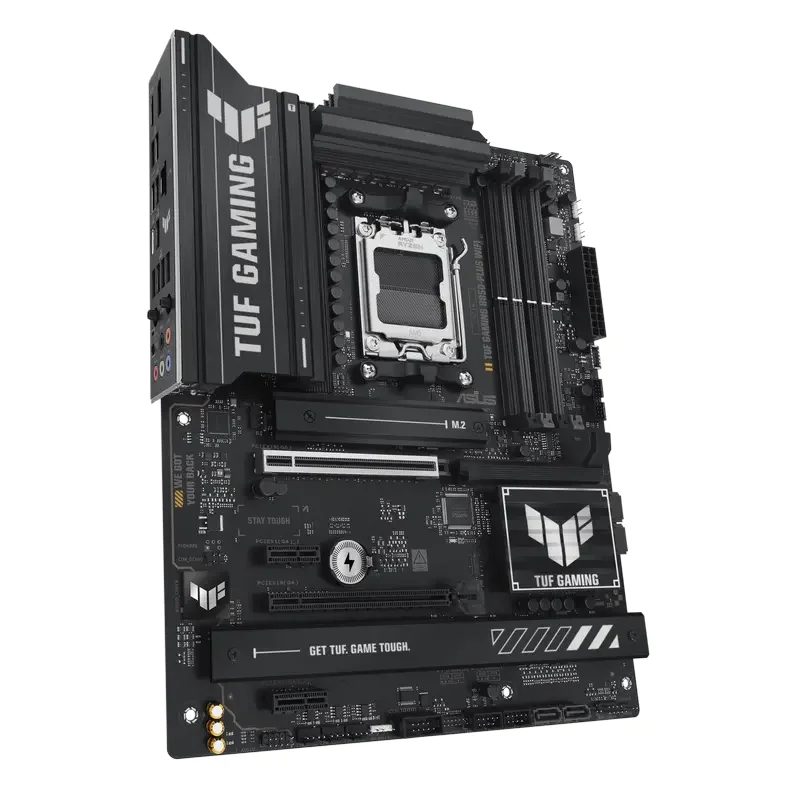

Mainboard ASUS TUF GAMING B850-PLUS WIFI, AM5, AMD B850, ATX
Product code: 227440
Mainboard ASUS TUF GAMING B850-PLUS WIFI, AM5, AMD B850, ATX
Description
In stock
5949 lei
Add to cart
Credit from 0 lei / month
Description
Specifications
Essential Characteristics
Type
Mainboard
Socket
AM5
Motherboard Form-Factor
ATX
CPU Support
Ryzen series (7000/8000/9000)
Output Connectors
USB Type-C
1x
Memory
Memory Slots
4x DIMM
Max. Memory Speed (OC) (Mhz)
8000
Total max. RAM Size
192GB
Memory Type
DDR5 SDRAM
System on Chip (SoC)
Chipset
AMD B850
Connectivity
Audio Jacks
5 x audio jacks
DisplayPort
1x DP 1.4
Dimension and Weight
Dimension
30.5 x 24.4 cm
Interfaces/Ports
USB 2.0 Type-A
2x
USB 3.x Type-A
7x USB 3.2
HDMI
1x HDMI 2.1
Network Connectivity
Ethernet controller #1
2.5 Gigabit Realtek Ethernet

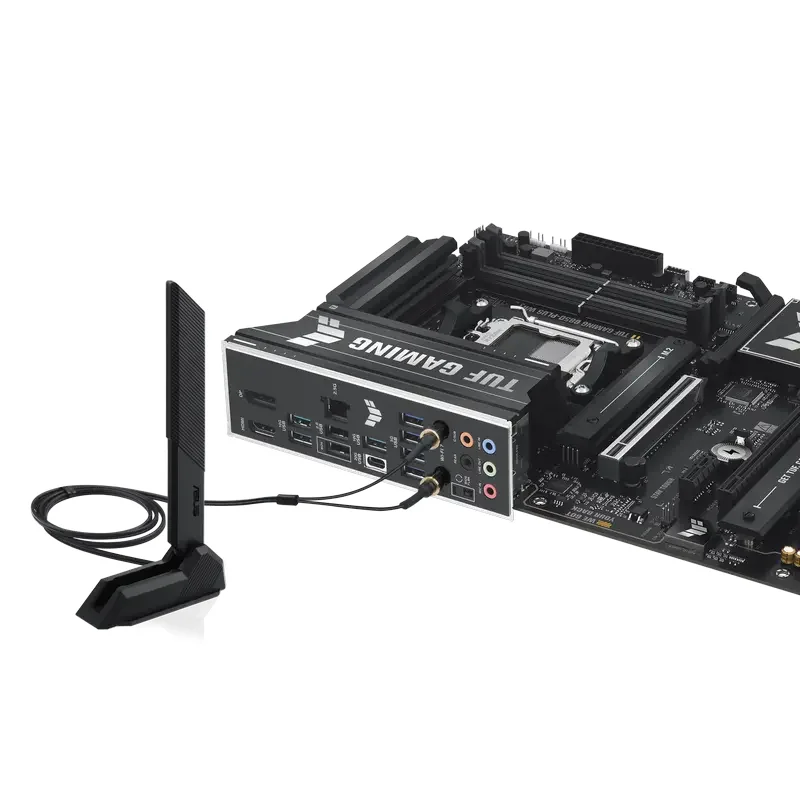

Wi-Fi Controller
2x2 Wi-Fi 7 (802.11be)
Bluetooth
5.4
Expansion Slots
PCIe 4.0 Support
Yes
PCI-Express x4 Slots
1
PCI Slots
1
PCI-Express x16 Slots
2
PCI-Express x1 Slots
2
Storage Interfaces
M.2 Expansion Slots
3
Slot support M2 #1
M2: type 2280 (PCIe Gen5 x4)
Slot support M2 #2
M2: type 2242/22110/2280 (PCIe Gen4 x4/x2)
Slot support M2 #3
M2: type 2280 (PCIe Gen4 x4)
SATA Connectors
4x SATA 6Gb/s
RAID
RAID 0, RAID 1, RAID 5, RAID 10

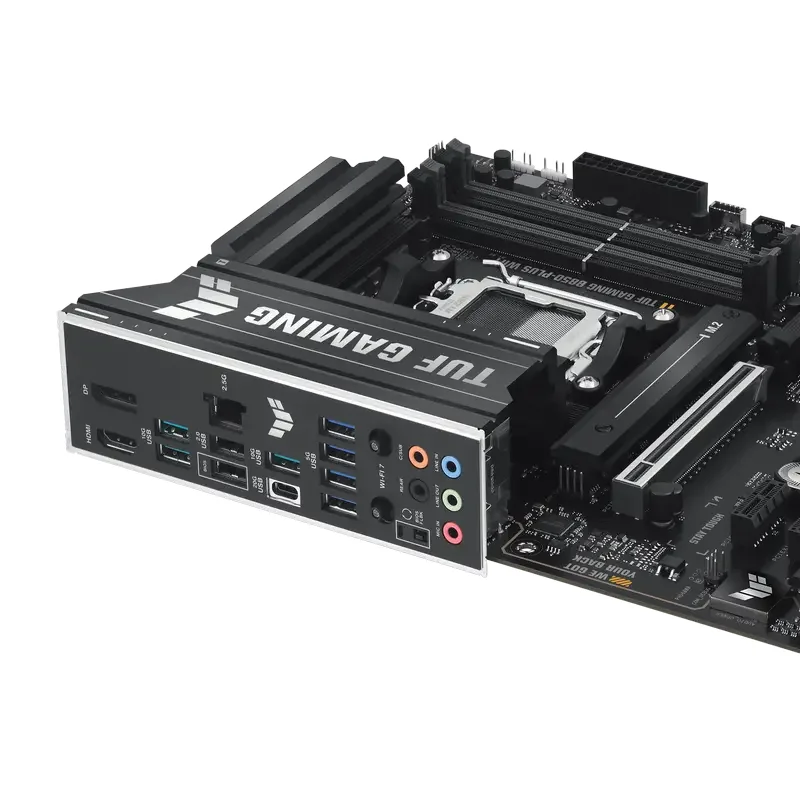

Interfaces / Ports Rear
PS/2 ports
1
COM Port
No
Graphics and Audio
Audio Chipset
7.1 Ch HD Audio, Realtek AL1220P
Internal I/O Connectors
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 3.x Headers
2x
COM Port Header
1
LPT Port Header
0
Addressable LED Header
3
RGB LED Headers
1
Other specifications
Manufacturer
ASUS
