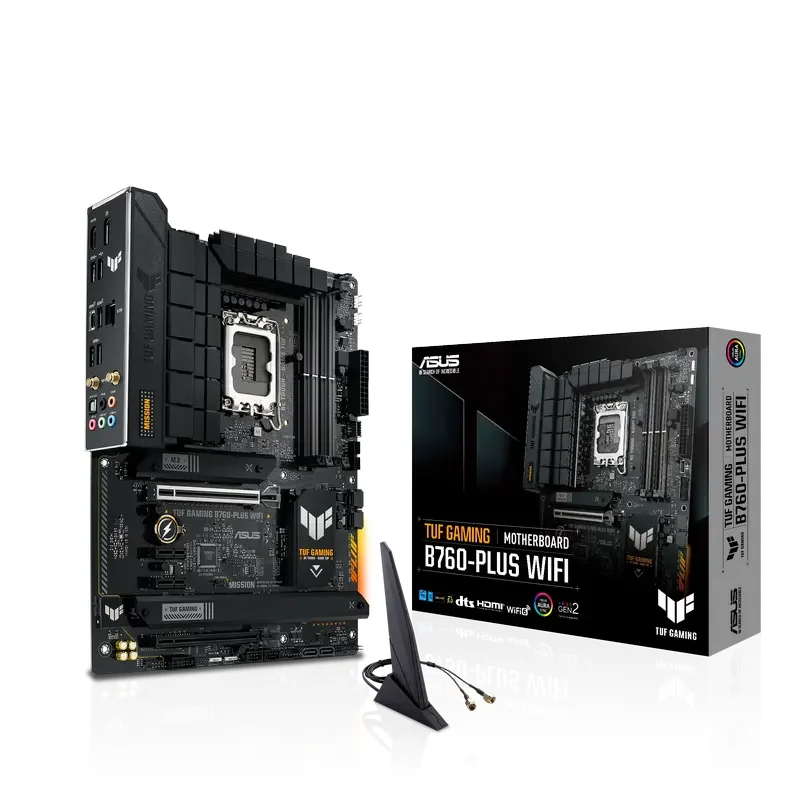

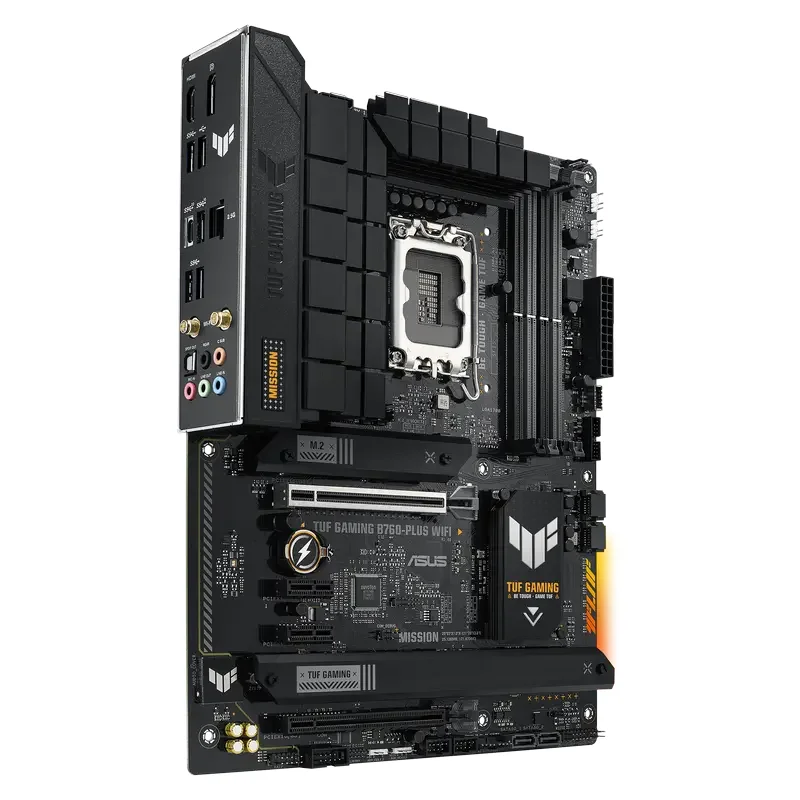

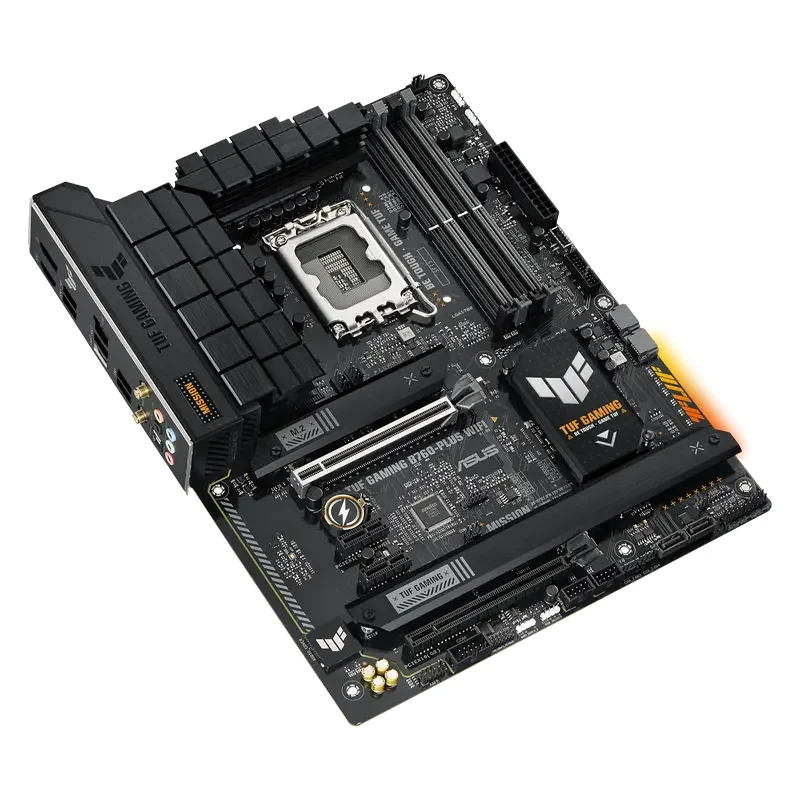

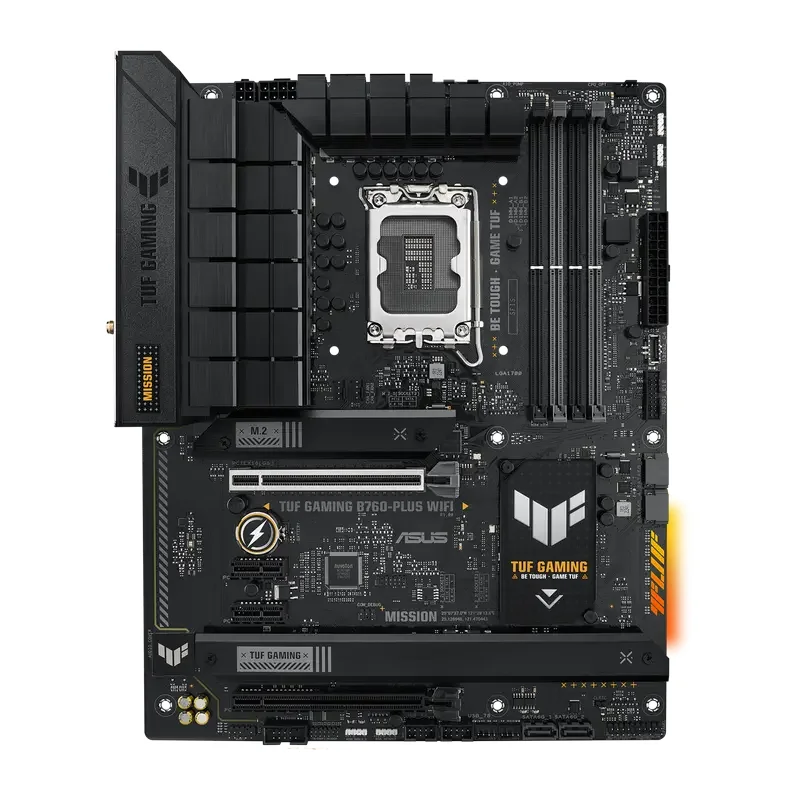

Mainboard ASUS TUF GAMING B760-PLUS WIFI, LGA1700, Intel B760, ATX
Product code: 213978
Mainboard ASUS TUF GAMING B760-PLUS WIFI, LGA1700, Intel B760, ATX
Description
In stock
4749 lei
Add to cart
Credit from 0 lei / month
Description
Specifications
Essential Characteristics
Type
Mainboard
Socket
LGA1700
Motherboard Form-Factor
ATX
CPU Support
Intel Core Gen 12th/13th & Celeron/Pentium
Output Connectors
USB Type-C
1x USB 3.2 Gen 2
Memory
Memory Slots
4x DIMM
Max. Memory Speed (OC) (Mhz)
7200
Total max. RAM Size
192GB
Memory Speed
5600 MHz
Memory Type
DDR5 SDRAM
System on Chip (SoC)
Chipset
Intel B760
Connectivity
D-Sub (VGA)
--
Audio Jacks
5 x audio jacks
DVI
--
DisplayPort
1x DP 1.4
Dimension and Weight
Dimension
30.5 x 24.4 cm
Interfaces/Ports
USB 2.0 Type-A
1x
USB 3.x Type-A
4x USB 3.2
HDMI
1x HDMI 2.1
Thunderbolt connector
1x Thunderbolt
Network Connectivity
Ethernet controller #1
2.5 Gigabit Realtek Ethernet
Wi-Fi Controller
802.11ax 2x2 Wi-Fi + BT 5.2
Bluetooth
5.2
Expansion Slots
PCIe 4.0 Support
No
PCI-Express x4 Slots
1
PCI Slots
1
PCI-Express x16 Slots
2
PCI-Express x1 Slots
2
Storage Interfaces
M.2 Expansion Slots
3
Slot support M2 #1
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2: PCIe Gen4 x4 (64 Gb/s)
SATA Connectors
4x SATA 6Gb/s
RAID
RAID 0, RAID 1, RAID 5, RAID 10

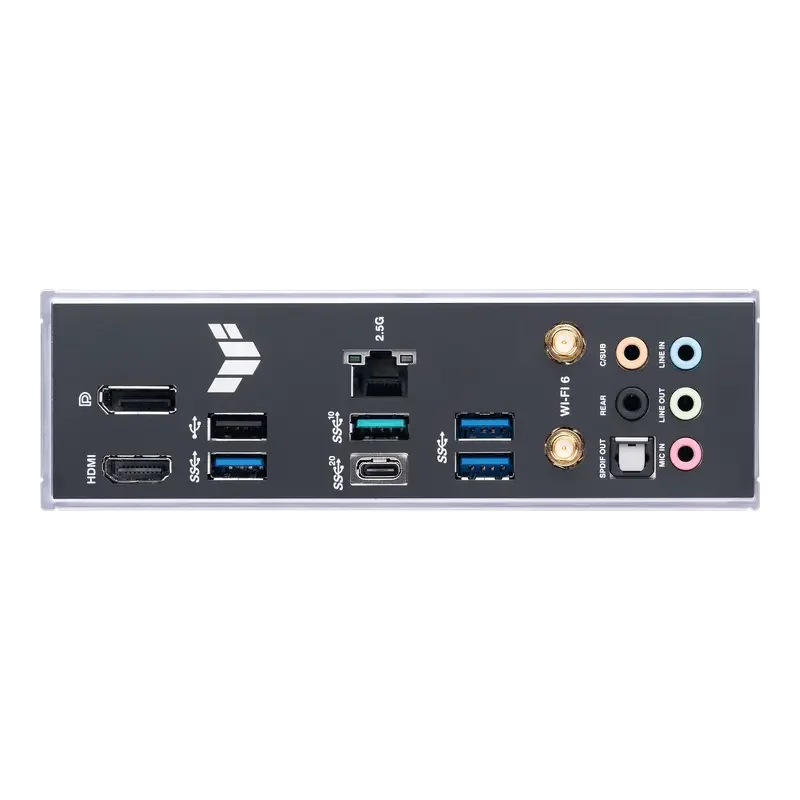

Interfaces / Ports Rear
PS/2 ports
1
COM Port
No
Graphics and Audio
Audio Chipset
Realtek 7.1 Surround Sound High Definition
SPDIF Out
1x Optical SPDIF Out Port
Internal I/O Connectors
USB 2.0 Headers
2x USB 2.0
USB 3.x Headers
1 x USB 3.2 Gen1 (Supports 2 USB 3.2 Gen1 ports)
COM Port Header
1
LPT Port Header
0
Addressable LED Header
3
RGB LED Headers
1
Other specifications
Manufacturer
ASUS
