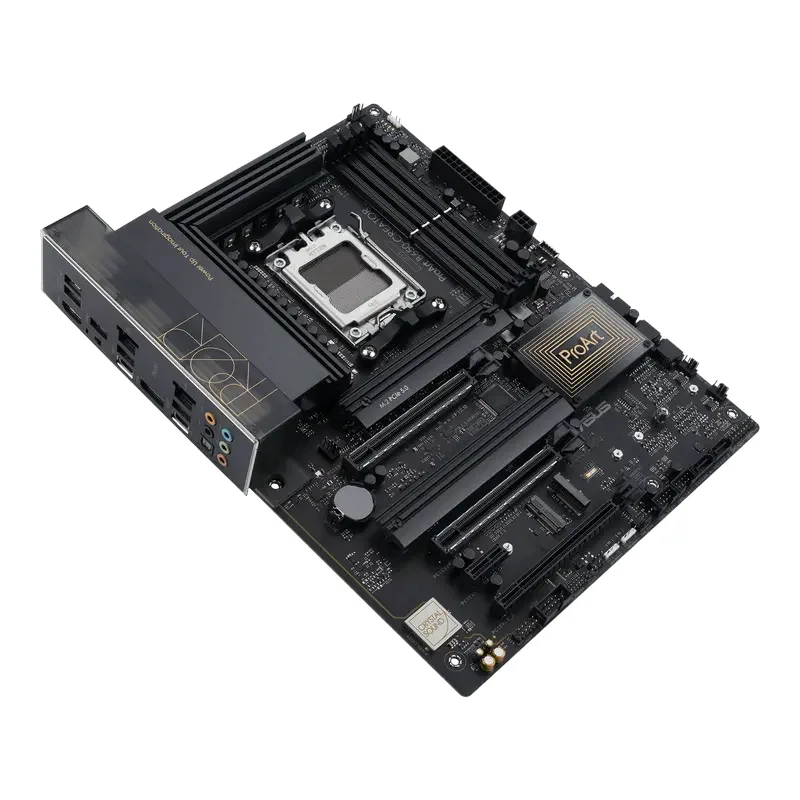

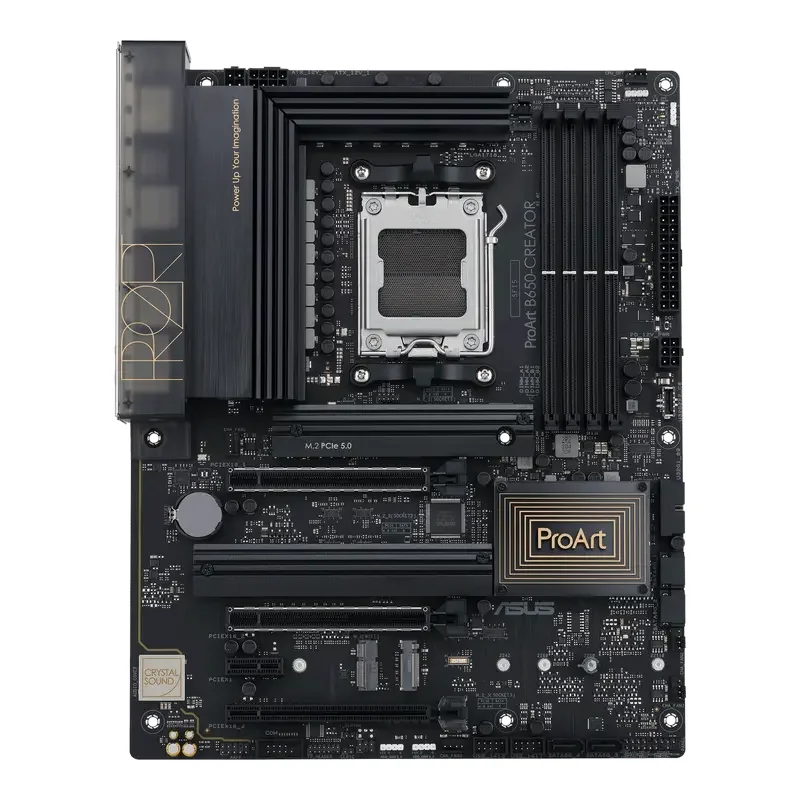

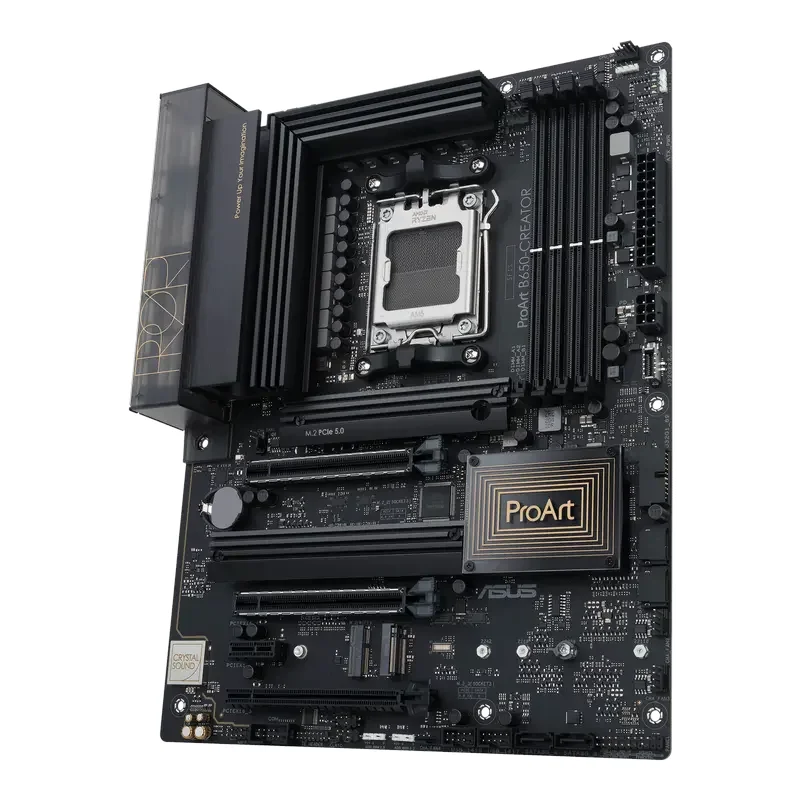

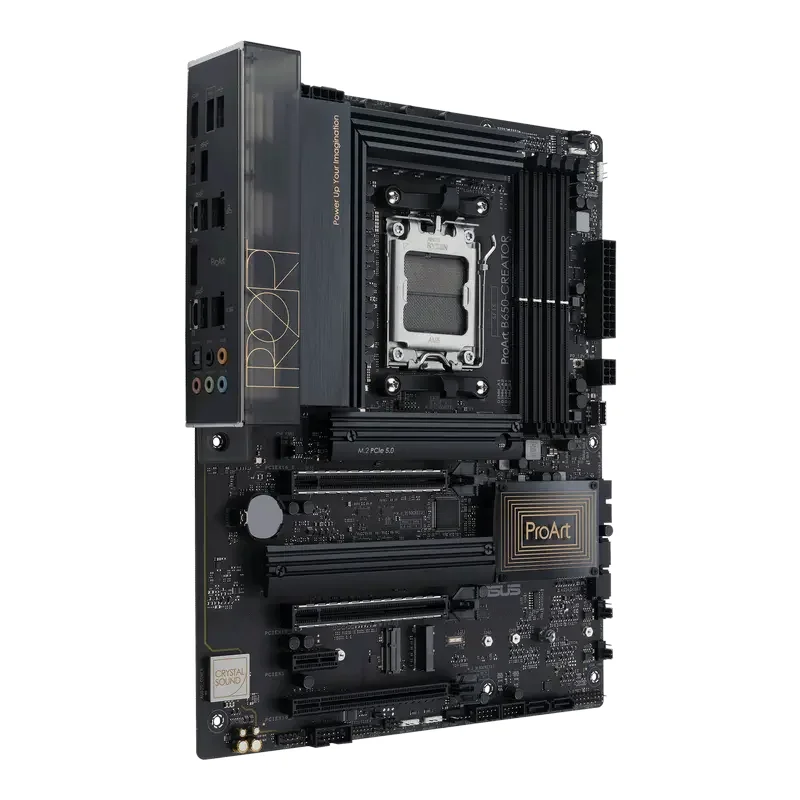

Mainboard ASUS PROART B650-CREATOR, AM5, AMD B650, ATX
Product code: 221100
Mainboard ASUS PROART B650-CREATOR, AM5, AMD B650, ATX
Description
In stock
6449 lei
Add to cart
Credit from 0 lei / month
Description
Specifications
Essential Characteristics
Type
Mainboard
Socket
AM5
Motherboard Form-Factor
ATX
CPU Support
Ryzen series (7000/8000/9000)
Output Connectors
USB Type-C
2x USB 3.2 Gen 2
Memory
Memory Slots
4x DIMM
Max. Memory Speed (OC) (Mhz)
7600
Total max. RAM Size
192GB
Memory Speed
5200 MHz
Memory Type
DDR5 SDRAM
System on Chip (SoC)
Chipset
AMD B650
Connectivity
Audio Jacks
5 x audio jacks
DisplayPort
1x DP 1.4
Dimension and Weight
Dimension
30.5 x 24.4 cm
Interfaces/Ports
USB 2.0 Type-A
2x
USB 3.x Type-A
3x USB 3.2
HDMI
1x HDMI 2.1
Network Connectivity
Ethernet controller #1
2.5 Gigabit Realtek Ethernet
Ethernet controller #2
1 Gigabit Ethernet
Expansion Slots
PCIe 4.0 Support
Yes
PCI-Express x4 Slots
1
PCI Slots
1
PCI-Express x16 Slots
3
PCI-Express x1 Slots
1
Storage Interfaces
M.2 Expansion Slots
3
Slot support M2 #1
M2: type 2242/2260/2280 (PCIe Gen5 x4)
Slot support M2 #2
M2: type 2242/2260/2280/22110 (PCIe Gen4 x4)
Slot support M2 #3
M2: type 2242/2260/2280/22110 (PCIe Gen4 x4)
SATA Connectors
4x SATA 6Gb/s
RAID
RAID 0, RAID 1, RAID 10

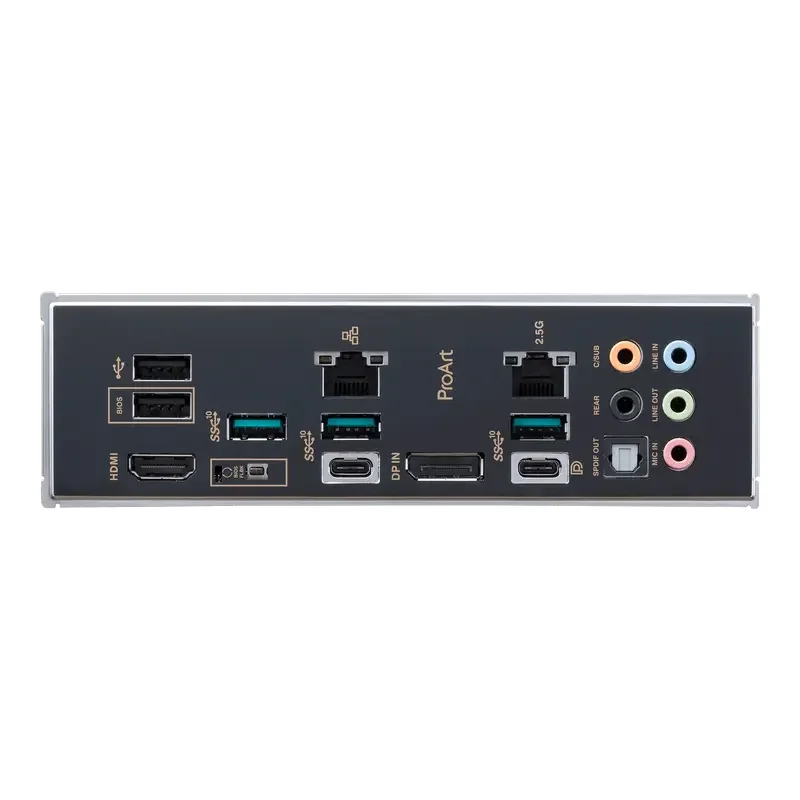

Interfaces / Ports Rear
PS/2 ports
1
COM Port
No
Graphics and Audio
Audio Chipset
Realtek 7.1 Surround Sound High Definition
SPDIF Out
1x Optical SPDIF Out Port
Internal I/O Connectors
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 3.x Headers
2x
COM Port Header
1
LPT Port Header
0
Addressable LED Header
3
RGB LED Headers
1
Other specifications
Manufacturer
ASUS
