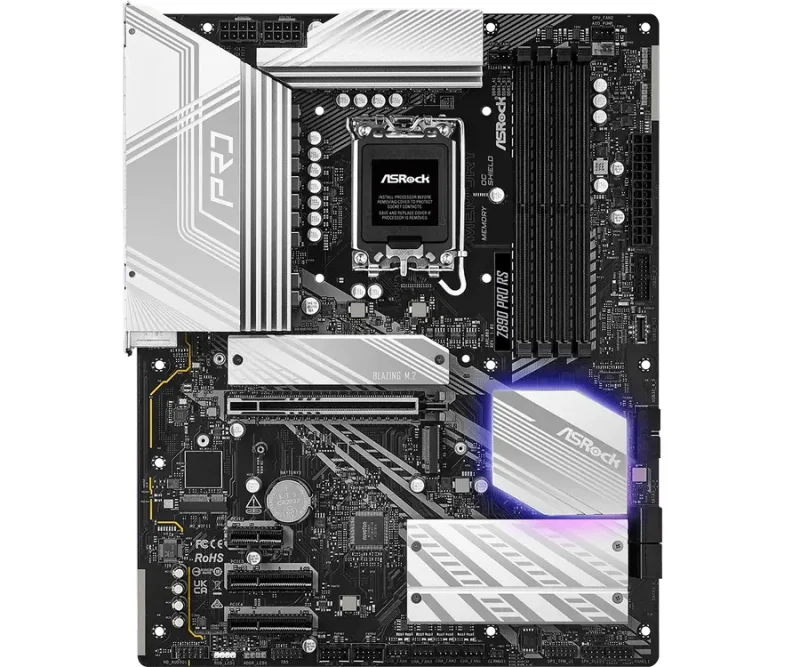

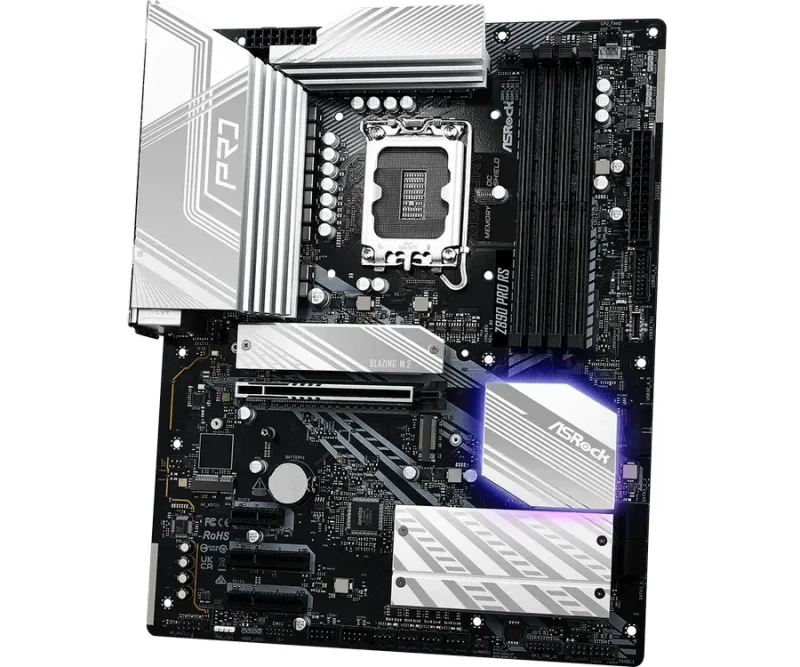

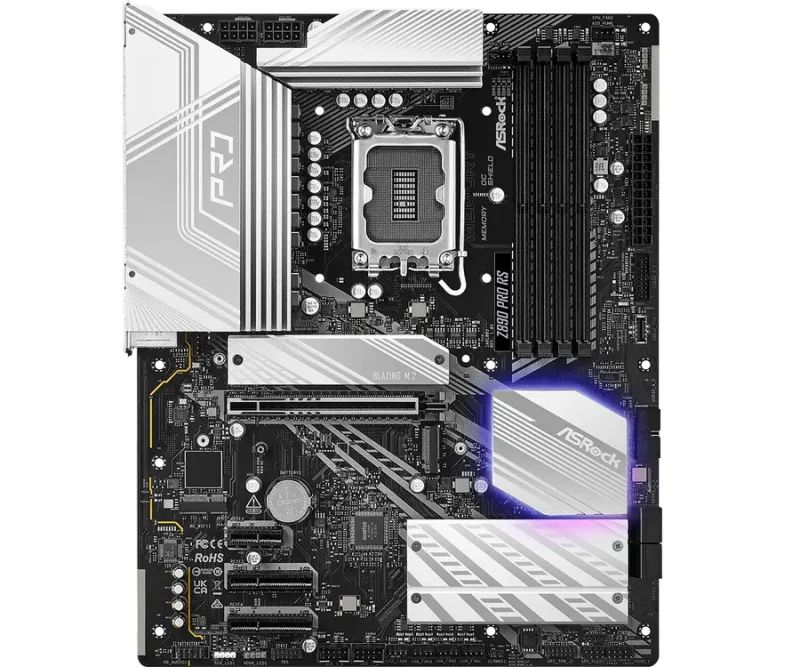

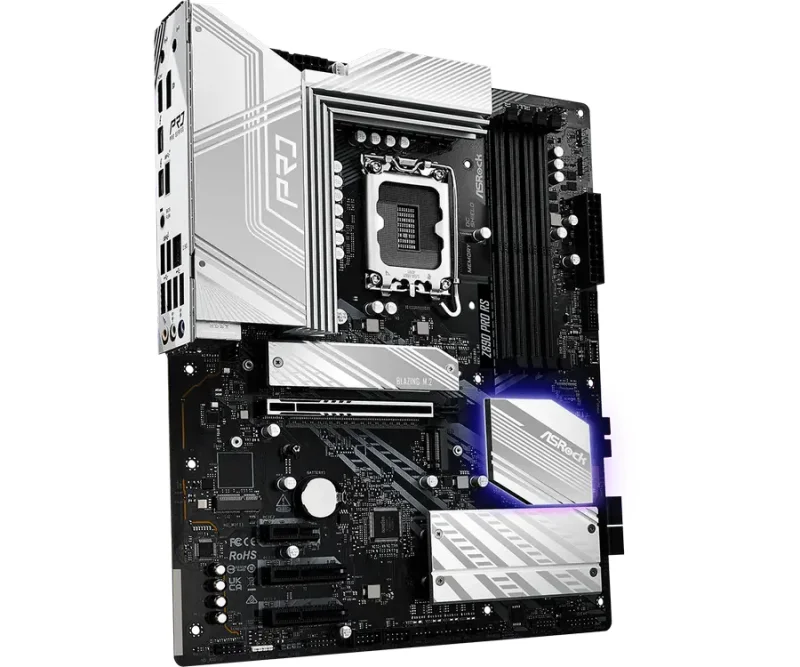

Mainboard ASRock Z890 PRO RS, LGA1851, Intel Z890, ATX
Product code: 225211
Mainboard ASRock Z890 PRO RS, LGA1851, Intel Z890, ATX
Description
In stock
5599 lei
Add to cart
Credit from 0 lei / month
Description
Specifications
Essential Characteristics
Type
Mainboard
Socket
LGA1851
Motherboard Form-Factor
ATX
CPU Support
Intel Core Ultra (Series 2)
Memory
Memory Slots
4x DIMM
Max. Memory Speed (OC) (Mhz)
9066
Total max. RAM Size
256GB
Memory Speed
5600 MHz
Memory Type
DDR5 SDRAM
System on Chip (SoC)
Chipset
Intel Z890
Connectivity
Audio Jacks
HD Audio Jacks: Line in / Front Speaker / Microphone
DisplayPort
1x DP 1.4
Dimension and Weight
Dimension
30.5 x 24.4 cm
Interfaces/Ports
USB 2.0 Type-A
4x
USB 3.x Type-A
3x USB 3.2
HDMI
1x HDMI 2.1
Thunderbolt connector
2x Thunderbolt 4
Network Connectivity
Ethernet controller #1
2.5 Gigabit Realtek Ethernet
Ethernet controller #2
Dragon RTL8125BG
Expansion Slots
PCIe 4.0 Support
Yes
PCI-Express x4 Slots
2
PCI Slots
4
PCI-Express x16 Slots
1
PCI-Express x1 Slots
1
Storage Interfaces
M.2 Expansion Slots
4
Slot support M2 #1
M2: PCIe Gen5 x4 (128 Gb/s)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #4
M2: SATA & PCIe Gen4 x4
SATA Connectors
4x SATA 6Gb/s
RAID
RAID 0, RAID 1, RAID 5, RAID 10

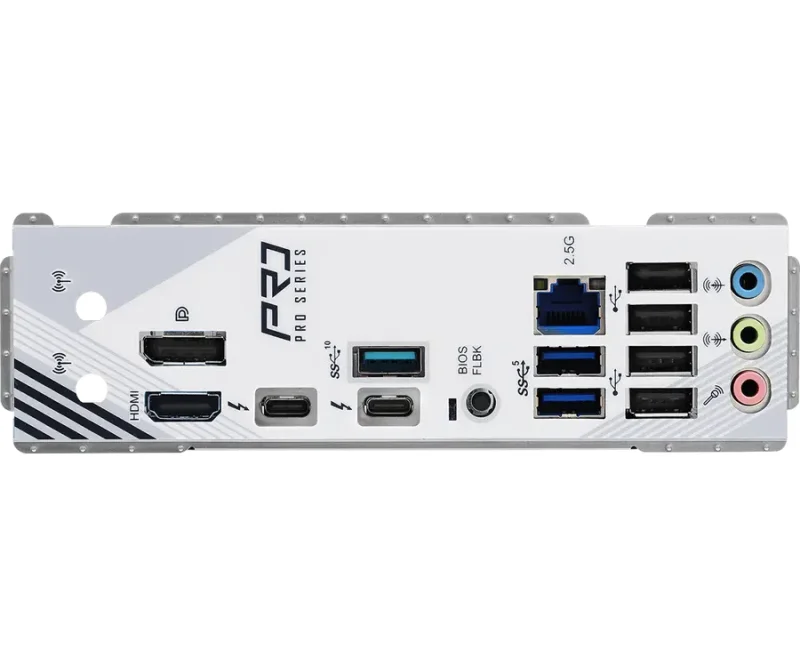

Interfaces / Ports Rear
PS/2 ports
1
COM Port
No
Graphics and Audio
Audio Chipset
7.1 Ch HD Audio, Realtek ALC897
Internal I/O Connectors
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 3.x Headers
1x USB 3.2 Gen2x2 Type-C + 2x USB 3.2 Gen1 (Support 4 USB 3.2 Gen1 ports)
COM Port Header
0
LPT Port Header
0
Addressable LED Header
3
RGB LED Headers
1
Other specifications
Manufacturer
ASRock
