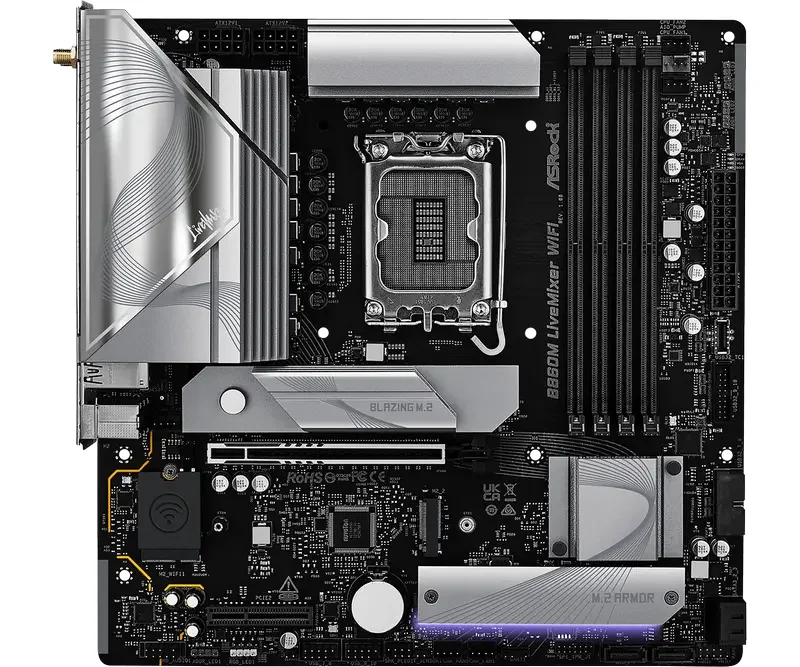

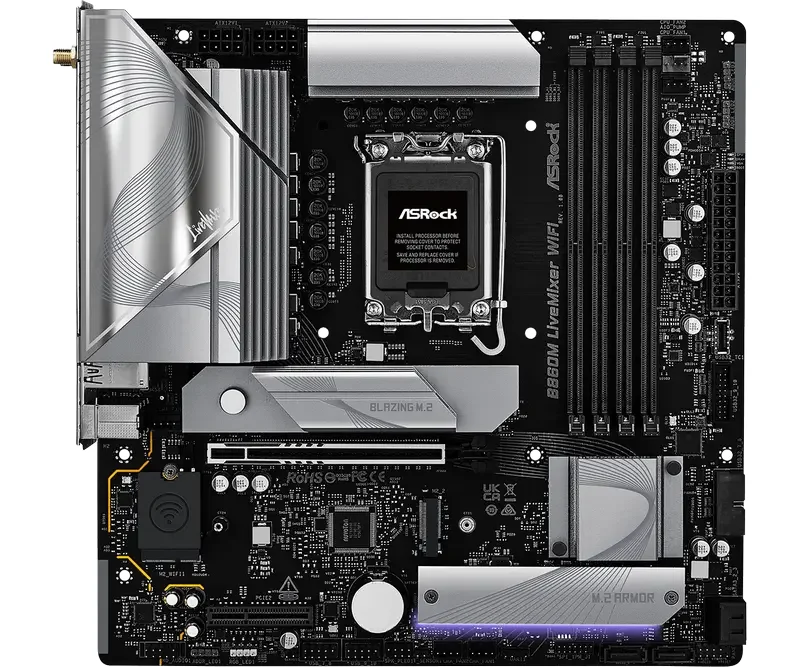

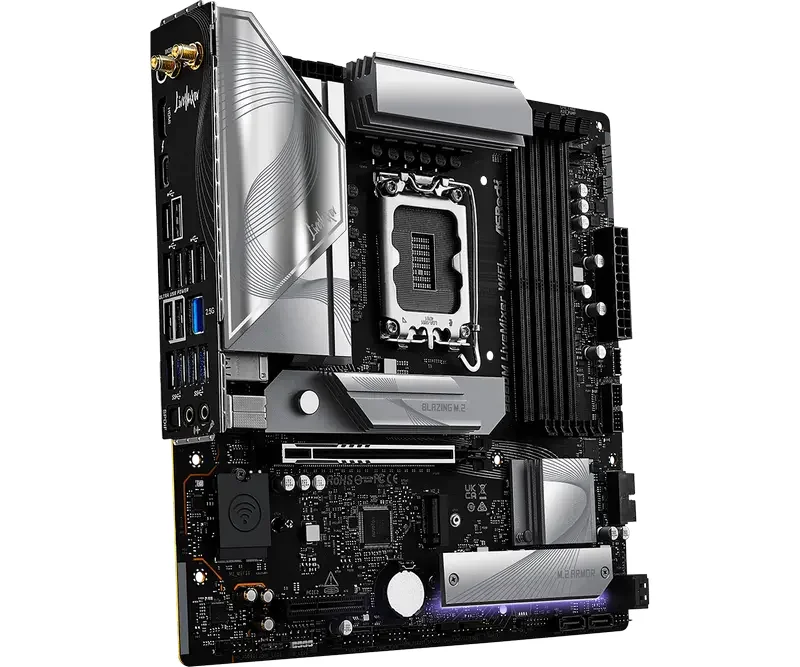

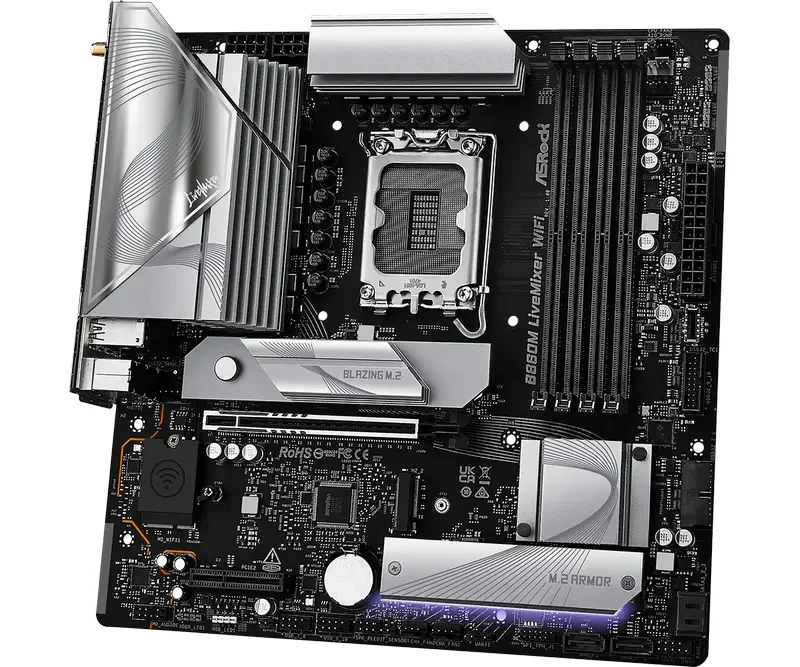

Mainboard ASRock B860M LiveMixer WiFi, LGA1851, Intel B860, Micro-ATX
Product code: 227661
Mainboard ASRock B860M LiveMixer WiFi, LGA1851, Intel B860, Micro-ATX
Description
In stock
4199 lei
Add to cart
Credit from 0 lei / month
Description
Specifications
Essential Characteristics
Type
Mainboard
Socket
LGA1851
Motherboard Form-Factor
Micro-ATX
CPU Support
Intel Core Ultra (Series 2)
Memory
Memory Slots
4x DIMM
Max. Memory Speed (OC) (Mhz)
8666
Total max. RAM Size
256GB
Memory Type
DDR5 SDRAM
System on Chip (SoC)
Chipset
Intel B860
Connectivity
Audio Jacks
HD Audio Jacks: Line Out / Microphone (Gold Jacks)
Dimension and Weight
Dimension
24.4 x 24.4 cm
Interfaces/Ports
USB 2.0 Type-A
6x
USB 3.x Type-A
6x USB 3.2
HDMI
1x HDMI 2.1
Thunderbolt connector
2x Thunderbolt 4
Network Connectivity
Ethernet controller #1
2.5 Gigabit Realtek Ethernet
Ethernet controller #2
Dragon RTL8125BG
Wi-Fi Controller
Wi-Fi 6E
Bluetooth
5.3
Expansion Slots
PCIe 4.0 Support
Yes
PCI-Express x4 Slots
1
PCI-Express x16 Slots
1
Storage Interfaces
M.2 Expansion Slots
3
Slot support M2 #1
M2: type 2280 (PCIe Gen5 x4)
Slot support M2 #2
M2: PCIe Gen4 x4 (64 Gb/s)
Slot support M2 #3
M2: PCIe Gen4 x4 (64 Gb/s)
SATA Connectors
4x SATA 6Gb/s
RAID
RAID 0, RAID 1, RAID 5, RAID 10

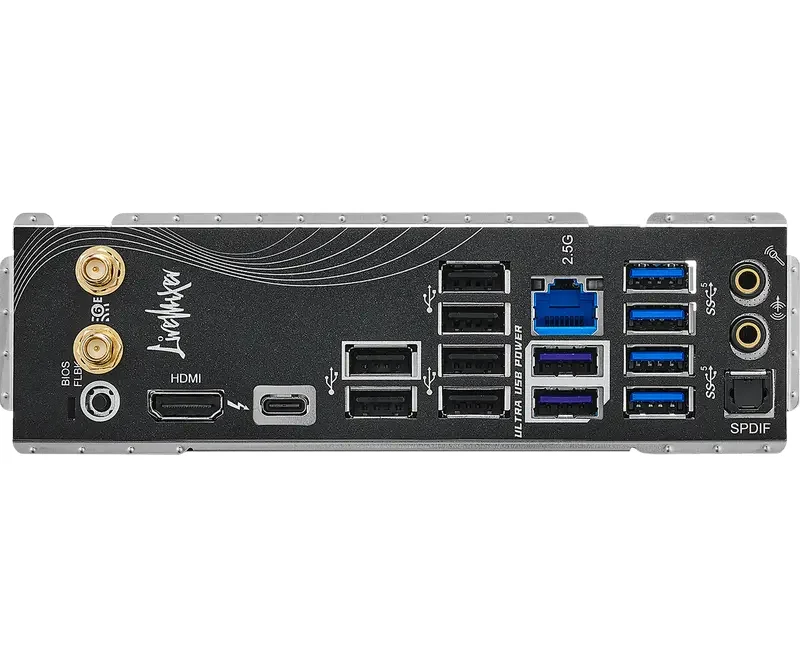

Interfaces / Ports Rear
COM Port
No
Graphics and Audio
Audio Chipset
7.1 Ch HD Audio, Realtek AL1220
SPDIF Out
1x Optical SPDIF Out Port
Internal I/O Connectors
USB 2.0 Headers
2x USB 2.0 (Support 4 USB Ports)
USB 3.x Headers
1x USB Type-C + 2x USB 3.2 Gen1
Addressable LED Header
3
RGB LED Headers
1
Other specifications
Manufacturer
ASRock
